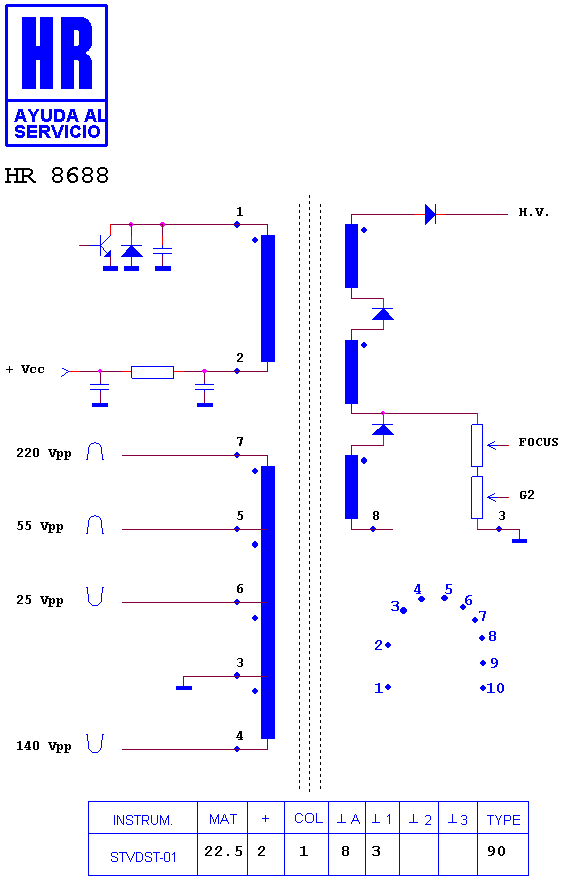

HR 8688

type ST · family 1YP · 22.5 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

Manufacturer equivalents (1)

TLF 15574 F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80131 · HR 8448 · HR 7435 · HR 8468 · HR 7386 · HR 8272 · HR 6521 · HR 6610 · HR 6485 · HR 7442 · HR 7489 · HR 7741

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY. COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

PANASONIC - MATSUSHITA CHASIS Z 5 V · PANASONIC - MATSUSHITA TX 21 SV 1 C
