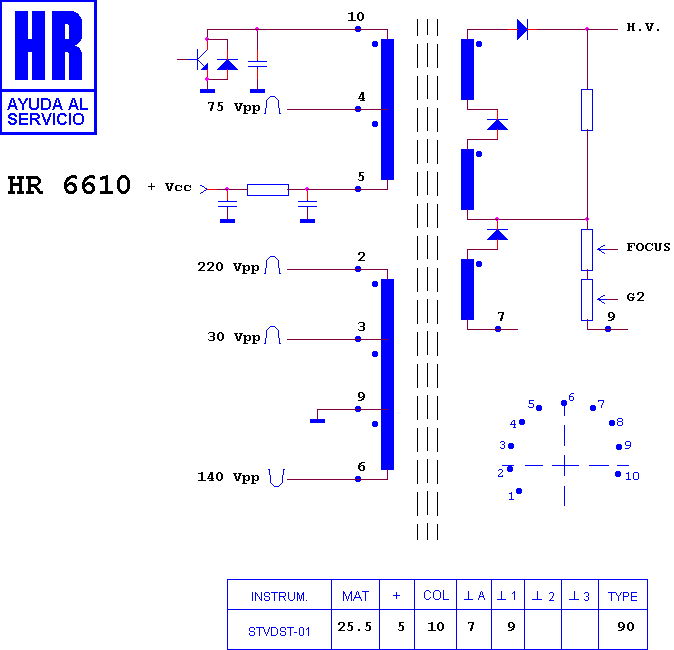

HR 6610

type ST · family 1GP · 25.5 kV maximum anode voltage · 90° deflection · 3 windings · 430 g

Manufacturer equivalents (6)

002 651 0314 · 003481101 · 26510314 · F 1366 CE · FAT 30383 · RTRNF1366CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80131 · HR 8331 · HR 8448 · HR 8170 · HR 8479 · HR 7704 · HR 7185 · HR 7755 · HR 6399 · HR 7403 · HR 8074 · HR 8688

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

SHARP CX 6374 · SHARP CX 6375
