HR 7185

type ST · family 1AP1 · 5 windings · 339 g

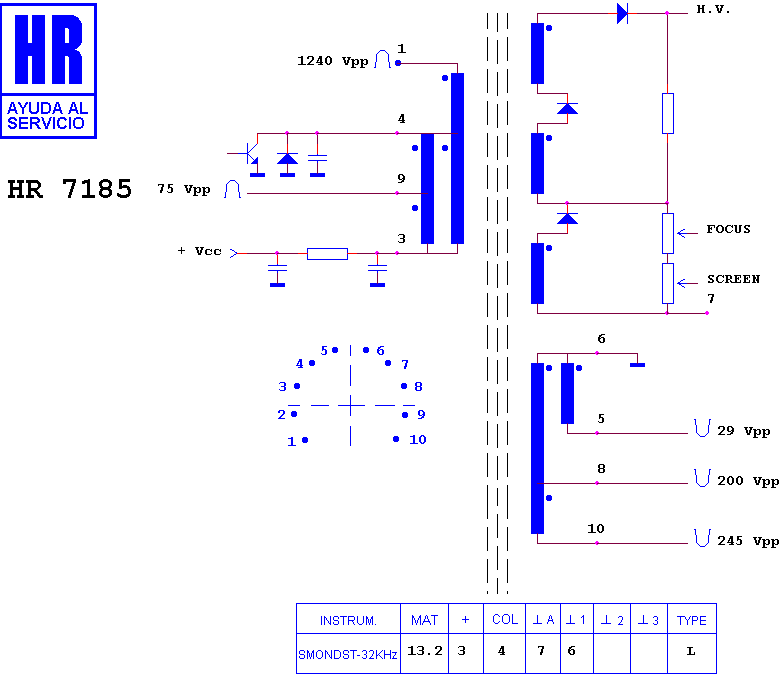

Schematic diagram for HR 7185
schematic

Manufacturer equivalents (4)

1105.0808 · 28025490 · FAT30357 · KN30357

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7133 · HR 6394 · HR 7241 · HR 6703 · HR 7097 · HR 7529 · HR 7186 · HR 80073 · HR 7616 · HR 7399 · HR 7157 · HR 6238

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (10)

HANTAREX CHASIS MTC 3000 10" · HANTAREX CHASIS MTC 3000 9" · HANTAREX CHASIS MTC 9000 10" · HANTAREX MTC 3000 · HANTAREX MTC 3000 10" · HANTAREX MTC 9000 · HANTAREX MTC 9000 10" · HANTAREX VIDEO GAME · VEGAS MTC 3000 10" · VEGAS VIDEO GAME
