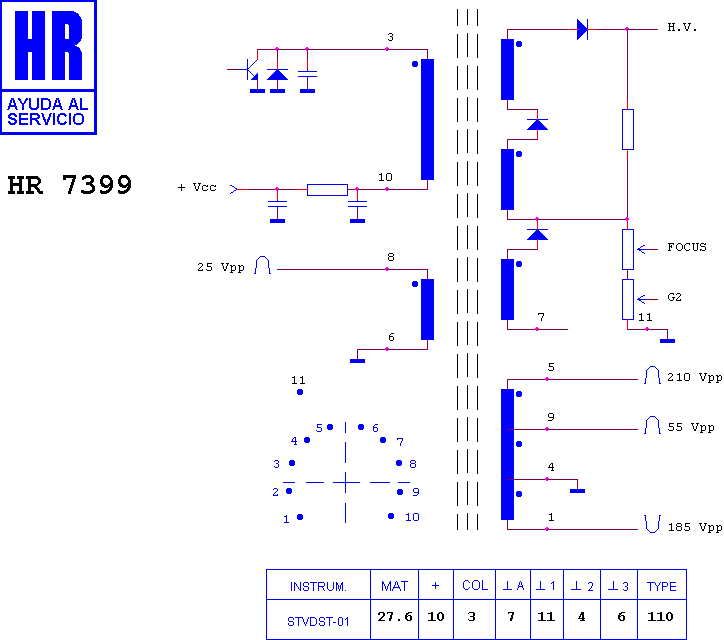

HR 7399

type ST · family 1AP1 · 27.6 kV maximum anode voltage · 110° deflection · 4 windings · 366 g

Manufacturer equivalents (5)

094-01083/0.1 · 1192.1217 · 1362.3021 · 94-01083/0.1 · FAT 30430

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7346 · HR 6370 · HR 6238 · HR 8857 · HR 6299 · HR 6368 · HR 7178 · HR 80073 · HR 6102 · HR 7643 · HR 7390 · HR 6521

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

SANYO C 2158 N · SANYO CHASIS EB 2 B
