HR 7178

type ST · family 1AP1 · 28.8 kV maximum anode voltage · 110° deflection · 3 windings · 347 g

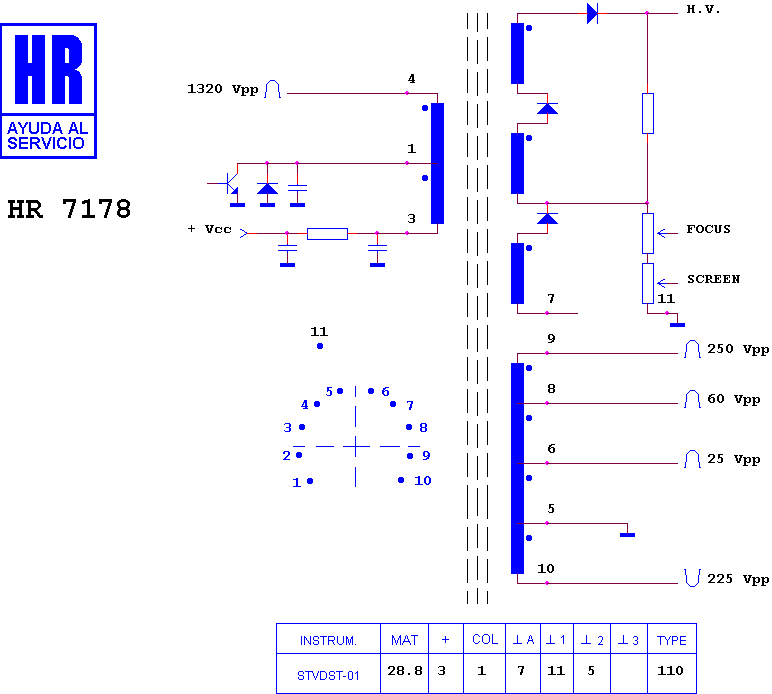

Schematic diagram for HR 7178
schematic

Manufacturer equivalents (6)

1192.0208 · 1192.0908 · 1242.5005 · 1362.3055 · FAT30510 · KN30510

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8023 · HR 6234 · HR 8073 · HR 6231 · HR 6299 · HR 6370 · HR 8857 · HR 6238 · HR 7390 · HR 6073 · HR 6703 · HR 8465

Fitted to (6)

CA&G VI 2500 · CA&G VI 2800 · CA&G VIDEO GAME · CA&G VIDIO GAME · HANTAREX MONITOR · HANTAREX VI 2800
