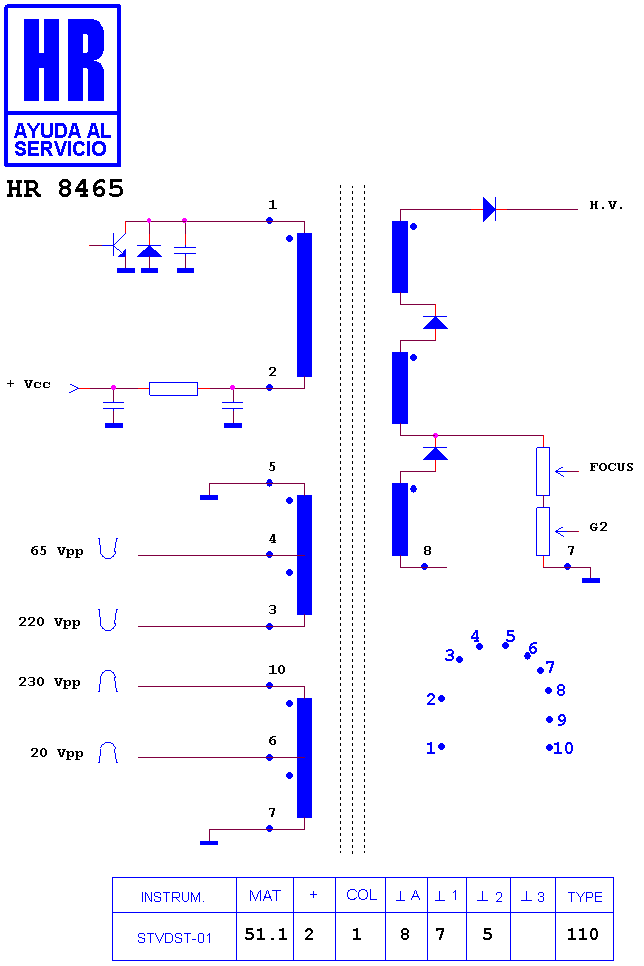

HR 8465

type ST · family 1YP · 51.1 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

Manufacturer equivalents (6)

BSC 29-23556 · TLF 14462 B · TLF 14462 F · TLF 14466 F · TLF 14470 F · TLF14462

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8842 · HR 8499 · HR 7643 · HR 6521 · HR 6703 · HR 6291 · HR 6288 · HR 6387 · HR 80035 · HR 7178 · HR 8023 · HR 7642

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (13)

NATIONAL TC 25 V 35 HN/R · NATIONAL TC 29 V 30 R · NATIONAL TC 29 V 50 A · NATIONAL TLF 14462 B · PANASONIC - MATSUSHITA 20 V 50 B · PANASONIC - MATSUSHITA 29 V 70 · PANASONIC - MATSUSHITA CHASIS MX 2 A · PANASONIC - MATSUSHITA FX 74 · PANASONIC - MATSUSHITA TC 29 V 30 L · PANASONIC - MATSUSHITA TC 29 V 30 R · PANASONIC - MATSUSHITA TC 29 V 50 A · PANASONIC - MATSUSHITA TC 29 V 50 B · PANASONIC - MATSUSHITA TX 28 WG 25 C
