HR 6291

type ST · family 1BP1 · 27 kV maximum anode voltage · 110° deflection · 5 windings · 417 g

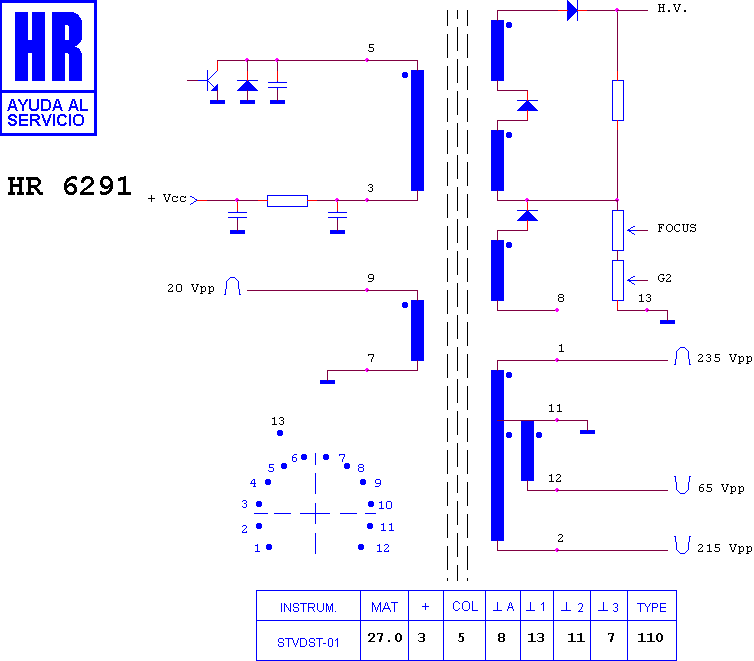

Schematic diagram for HR 6291
schematic

Manufacturer equivalents (3)

1182.0047 · 52 399 0731 · ME/6291-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6387 · HR 6288 · HR 8465 · HR 8857 · HR 6234 · HR 7178 · HR 6703 · HR 8023 · HR 80035 · HR 6370 · HR 6368 · HR 7399

Fitted to (3)

BRION VEGA OPERA · BRION VEGA OPERA 3 · BRION VEGA OPERA 33"
