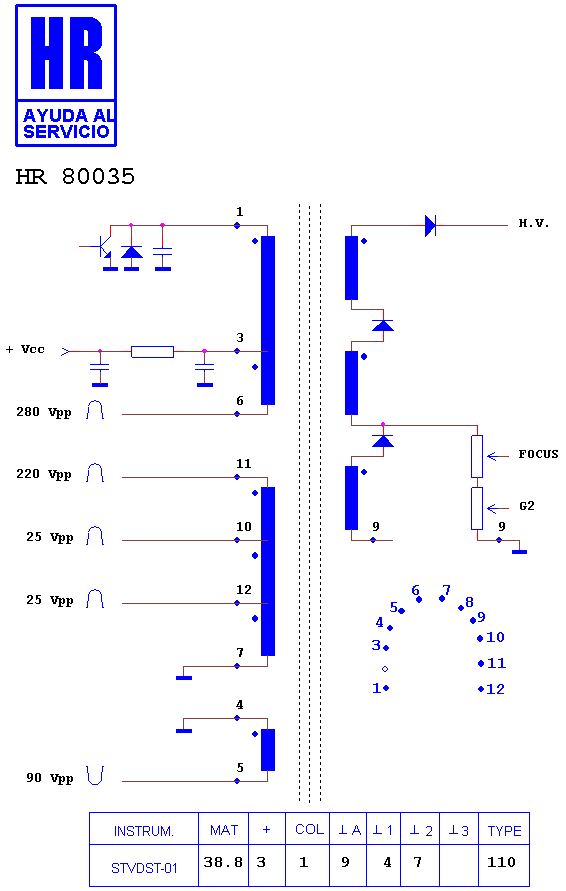

HR 80035

type ST · family 1YP · 38.8 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

Manufacturer equivalents (4)

094-02009/1.8 · 1302.0049 · 1302.0049 A · HR 80035

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8023 · HR 7171 · HR 6422 · HR 6521 · HR 8465 · HR 6703 · HR 7067 · HR 6231 · HR 80014 · HR 8289 · HR 6387 · HR 6288

Fitted to (1)

SANYO CE 28 FWA 5
