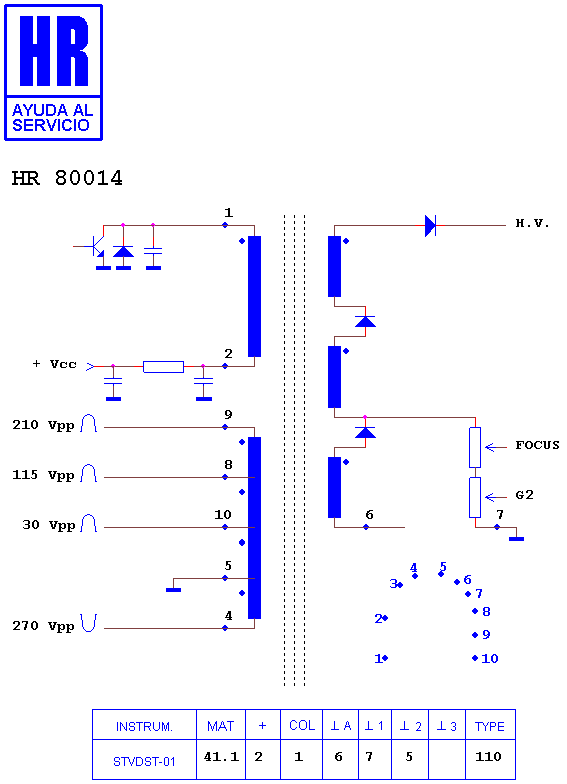

HR 80014

type ST · family 1YP · 41.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (3)

094-01099/0.3 · 94-01099/0.3 · HFT 2307

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8406 · HR 8436 · HR 8937 · HR 8533 · HR 7433 · HR 7802 · HR 80032 · HR 8499 · HR 8723 · HR 8346 · HR 8289 · HR 7067

Fitted to (3)

SANYO CE 29 FFV 1 · SANYO CE 32 FWV 1 · SANYO CHASIS EB 5 C

Search this part in the full database
