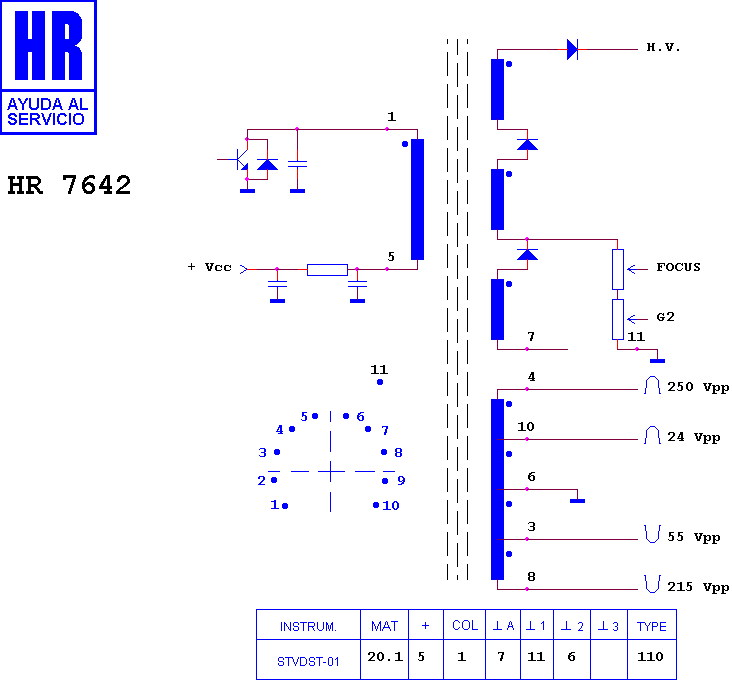

HR 7642

type ST · family 1XP1 · 20.1 kV maximum anode voltage · 110° deflection · 3 windings · 264 g

Manufacturer equivalents (1)

2434492

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7838 · HR 7643 · HR 6238 · HR 8053 · HR 8857 · HR 6370 · HR 7399 · HR 6291 · HR 8465 · HR 6563 · HR 6513 · HR 7378

Fitted to (2)

HITACHI CPT 2558 · HITACHI CPT 2568
