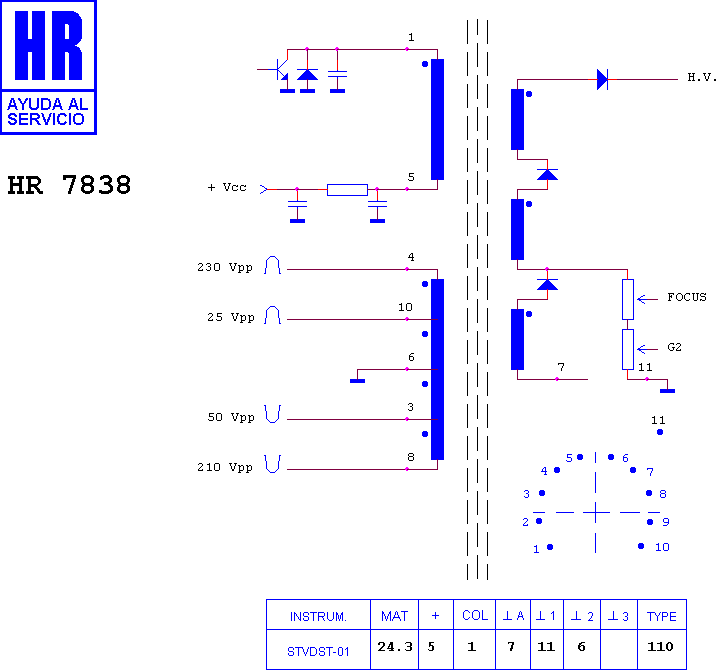

HR 7838

type ST · family 1XP1 · 24.3 kV maximum anode voltage · 110° deflection · 3 windings · 286 g

Manufacturer equivalents (1)

2434493

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7642 · HR 7643 · HR 8053 · HR 8857 · HR 6370 · HR 6563 · HR 6238 · HR 7399 · HR 7378 · HR 6368 · HR 6291 · HR 80073
