HR 6238

type ST · family 1BP1 · 29.4 kV maximum anode voltage · 110° deflection · 4 windings · 370 g

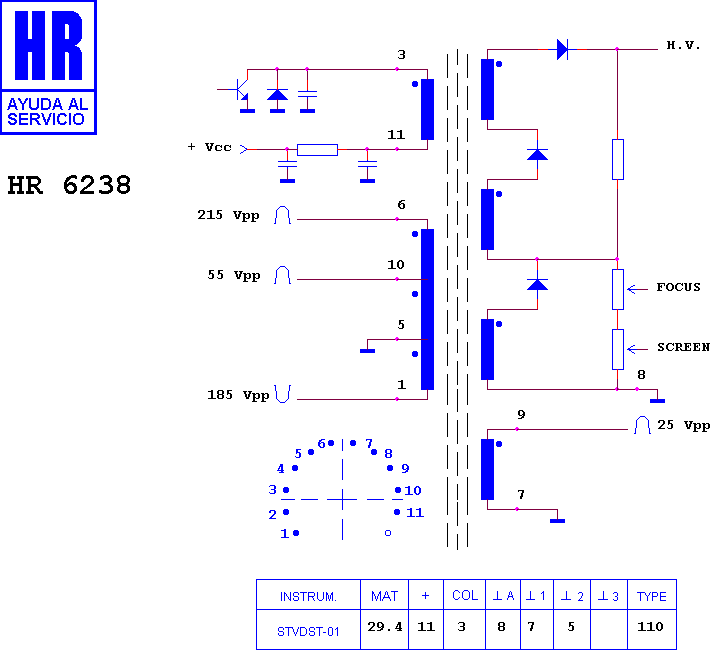

Schematic diagram for HR 6238
schematic

Manufacturer equivalents (8)

094-01058/0.2 · 0940105810 · 94-01058/0.2 · 94-01058/1.0 · HR 6238 · HR 6238-00 · HR 6238-01 · HR 6238-02

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6370 · HR 6299 · HR 6368 · HR 6249 · HR 6231 · HR 6246 · HR 6234 · HR 8857 · HR 7185 · HR 6703 · HR 6073 · HR 7390

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

SANYO CEP 2584 · SANYO CEP 2884 · SANYO CHASIS ED 0 110§
