HR 6246

type ST · family 1BP1 · 23.7 kV maximum anode voltage · 110° deflection · 4 windings · 370 g

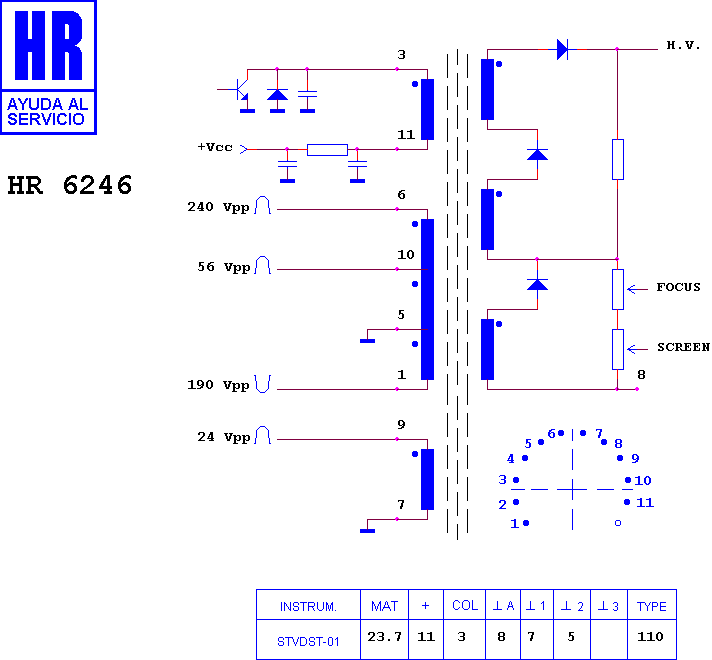

Schematic diagram for HR 6246
schematic

Manufacturer equivalents (9)

094-01059/0.1 · 094-01059/1.9 · 094-01061/0.3 · 094-01061/0.7 · 473100.44 · 473100.E4 · 94-01059/0.1 · 94-01061/0.7 · HR 6246

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6231 · HR 6238 · HR 6299 · HR 6370 · HR 6073 · HR 7178 · HR 6521 · HR 8023 · HR 7253 · HR 7838 · HR 8073 · HR 8990

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

SANYO CEP 2594 · SANYO CEP 2596 · SANYO CEP 2894 · SANYO CEP 2896 · SANYO CHASIS ED 0 110§
