HR 8990

35.4 kV maximum anode voltage · 110° deflection · 4 windings · 374 g

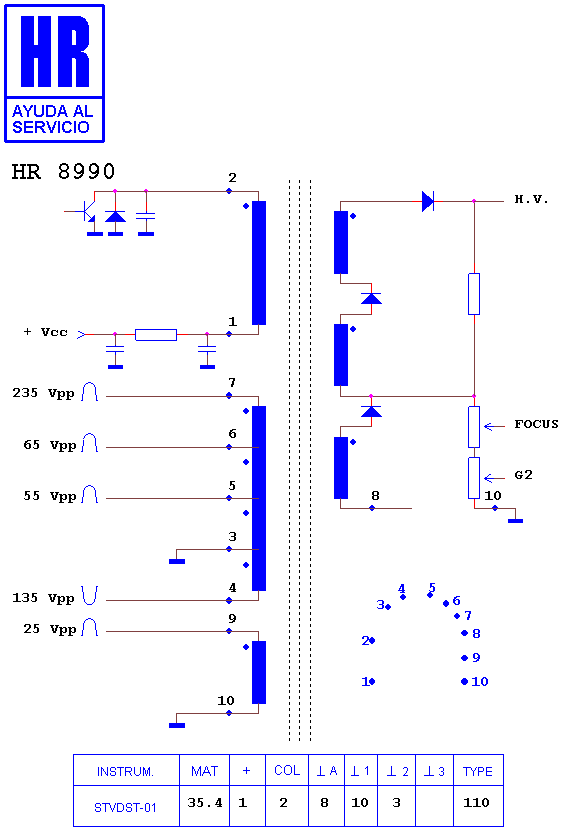

Schematic diagram for HR 8990
schematic (archived)

Manufacturer equivalents (3)

11030935351209 · 1352.5064 · 1352.5064A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7253 · HR 7386 · HR 8995 · HR 8837 · HR 7990 · HR 6608 · HR 6556 · HR 8507 · HR 8901 · HR 7951 · HR 8578 · HR 8436

Fitted to (14)

FORMENTI - ADMIRAL 83 S 48 W 300 · FORMENTI - ADMIRAL 83 S 48 W 300 · FORMENTI - ADMIRAL CHASIS FPC 2001 · FORMENTI - ADMIRAL ISEKR · FORMENTI - ADMIRAL ISKR · GOODMANS CHASIS FPC 2001 · GOODMANS W 282 NS-T · SELECO 83 S 48 W 300 · SELECO 83 S 48 W 300 · SELECO CHASIS FPC 2001 · SELECO ISEKR · SELECO ISKR · SINGER 71 WIDE SILVER · SINGER S
