HR 8507

type ST · family 1VP · 38.4 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

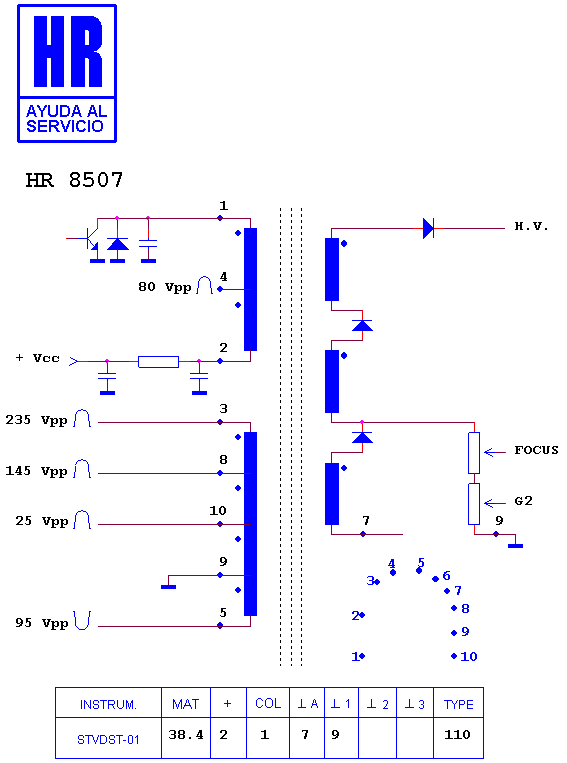

Schematic diagram for HR 8507
schematic

Manufacturer equivalents (2)

1AV4L40A00610 · L 40 A 00610

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8901 · HR 8324 · HR 8837 · HR 8701 · HR 8851 · HR 7724 · HR 8845 · HR 8932 · HR 8658 · HR 6556 · HR 6681 · HR 6720

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

SANYO DS 25430

Search this part in the full database
