HR 8701

25.2 kV maximum anode voltage · 110° deflection · 4 windings · 296 g

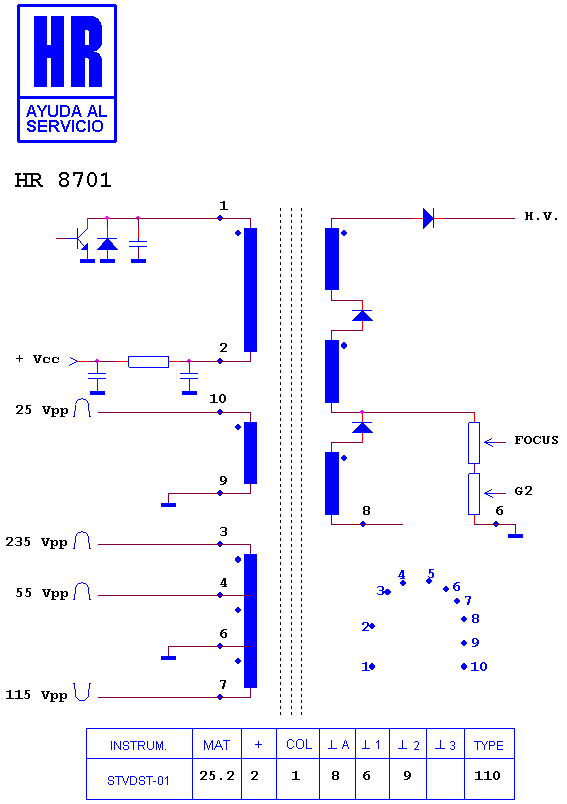

Schematic diagram for HR 8701 — schematic (archived)

Manufacturer equivalents (3)

1142.5105 · 1142.51050 · 1142.5105A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8679 · HR 8837 · HR 8851 · HR 8932 · HR 8603 · HR 7724 · HR 8901 · HR 8845 · HR 8507 · HR 8332 · HR 8326 · HR 8413

Search this part in the full database
