HR 8851

31.5 kV maximum anode voltage · 110° deflection · 4 windings · 408 g

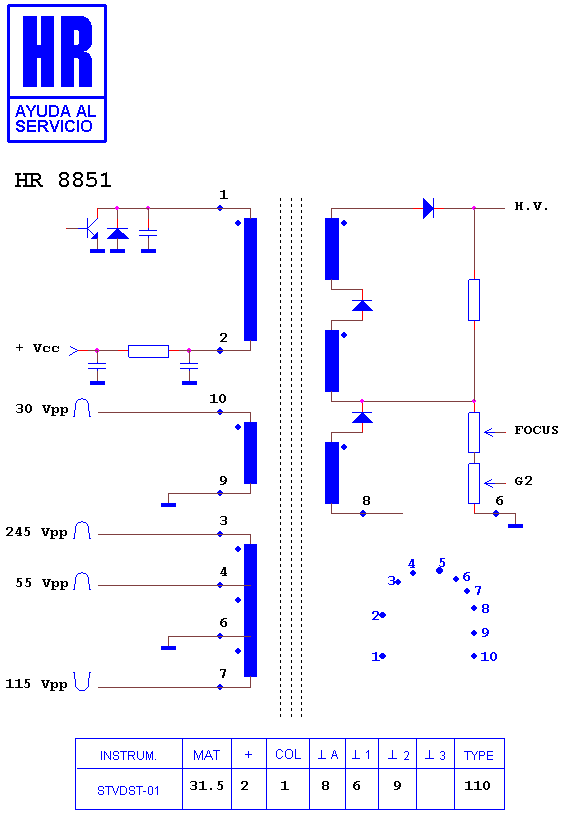

Schematic diagram for HR 8851
schematic (archived)

Manufacturer equivalents (7)

073.5038.0001.00 · 073.5105.0001.00 · 1352.5038 · 1352.50380 · 1352.5038A · 5038.0001.00 · HR 8851

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8845 · HR 8901 · HR 8837 · HR 8507 · HR 8332 · HR 8658 · HR 8701 · HR 8932 · HR 7386 · HR 6604 · HR 6272 · HR 6720

Fitted to (10)

RFT 55-6000 · RFT 63-6000 · RFT 70-6000 · RFT TV · RFT TV · RFT TV · TECHNISAT TV 55-6000 · TECHNISAT TV 55-6000 COLANI · TECHNISAT TV 63-6000 · TECHNISAT TV 70-6000
