HR 8845

31.8 kV maximum anode voltage · 110° deflection · 3 windings · 256 g

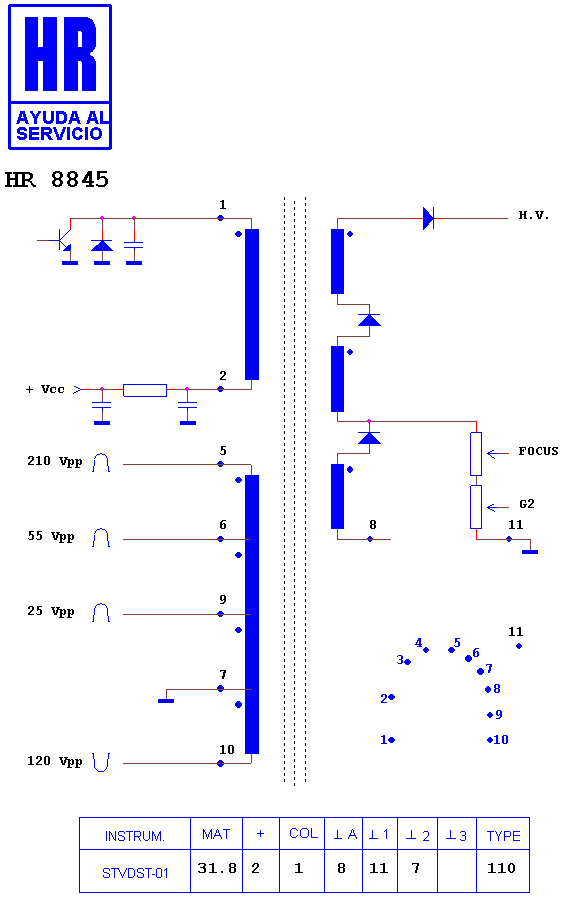

Schematic diagram for HR 8845
schematic (archived)

Manufacturer equivalents (5)

10808281 · 310610808281 · 3210-79093 · 3210-79093-00-0 · OV2094/D1F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8332 · HR 8901 · HR 8578 · HR 8436 · HR 8507 · HR 8837 · HR 8937 · HR 7724 · HR 8932 · HR 8701 · HR 8851 · HR 8326

Fitted to (1)

PHILCO CHASIS CPH 05
