HR 7990

type ST · family 1YP · 48.6 kV maximum anode voltage · 110° deflection · 3 windings · 402 g

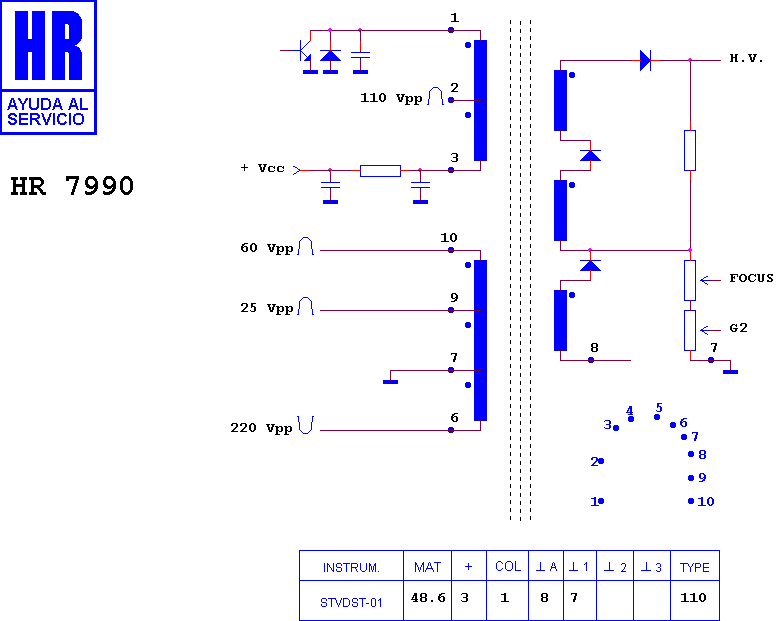

Schematic diagram for HR 7990
schematic

Manufacturer equivalents (2)

154 144 A · 154179B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6720 · HR 7386 · HR 6556 · HR 8837 · HR 6554 · HR 7965 · HR 8901 · HR 6272 · HR 7062 · HR 6483 · HR 6277 · HR 6121

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

CITIZEN JCTV 3306 · GOLDSTAR - LG CMT 2612
