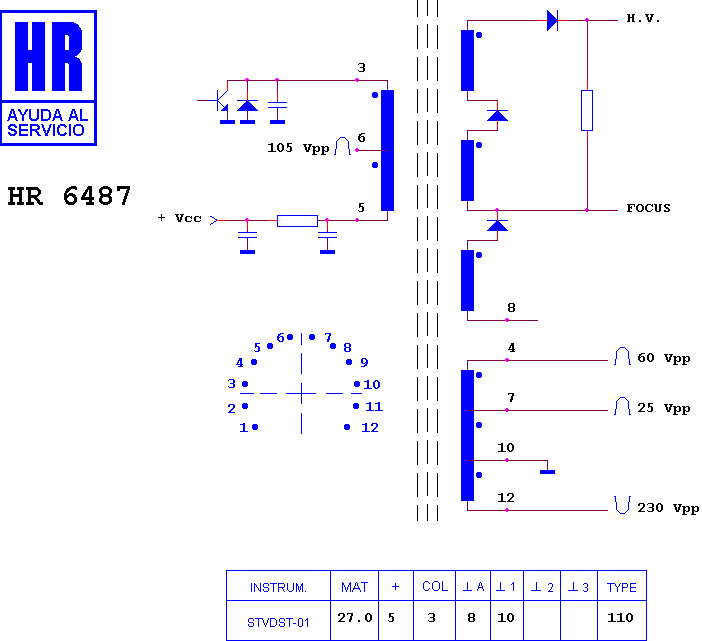

HR 6487

type ST · family 1BS1 · 27 kV maximum anode voltage · 110° deflection · 3 windings · 358 g

Manufacturer equivalents (3)

1182.6039 · 1182.6039 C · 422741.00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6277 · HR 6121 · HR 6532 · HR 6545 · HR 6592 · HR 6120 · HR 6704 · HR 6228 · HR 6069 · HR 6292 · HR 6177 · HR 8376

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16529 — Focus control

Fitted to (4)

FORMENTI - ADMIRAL CHASIS F 9 · FORMENTI - ADMIRAL CHASIS F 9 34" · FORMENTI - ADMIRAL CHASIS F 9-00 34" · SELECO CHASIS BS 800
