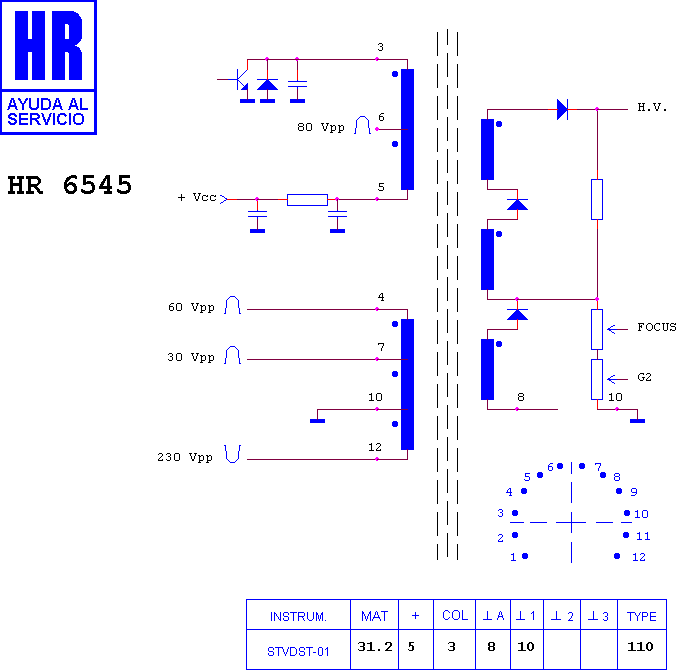

HR 6545

type ST · family 1BP1 · 31.2 kV maximum anode voltage · 110° deflection · 3 windings · 390 g

Manufacturer equivalents (1)

HR 6545-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6592 · HR 6704 · HR 6532 · HR 6120 · HR 6292 · HR 6121 · HR 6069 · HR 6277 · HR 6487 · HR 6177 · HR 8770 · HR 6554
