HR 6704

34.2 kV maximum anode voltage · 110° deflection · 3 windings · 380 g

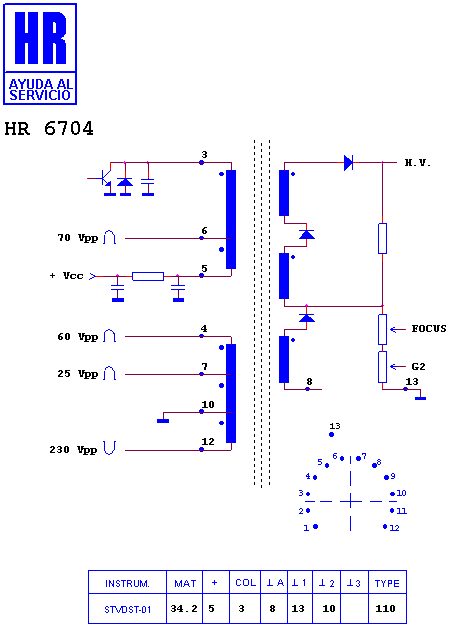

Schematic diagram for HR 6704
schematic (archived)

Manufacturer equivalents (5)

1182.1747 · 1182.1747A · 700402195 · 88700402195 · HR 6704

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6592 · HR 6292 · HR 6591 · HR 6545 · HR 6487 · HR 6532 · HR 6120 · HR 8658 · HR 6681 · HR 6556 · HR 8507 · HR 8324

Fitted to (5)

FORMENTI - ADMIRAL W 321 NS · GOODMANS W 321 N 3 · GOODMANS W 321 NS · SELECO W 321 NS · SELECO W 321 S

Search this part in the full database
