HR 6681

type ST · family 1BP1 · 41.1 kV maximum anode voltage · 110° deflection · 4 windings · 380 g

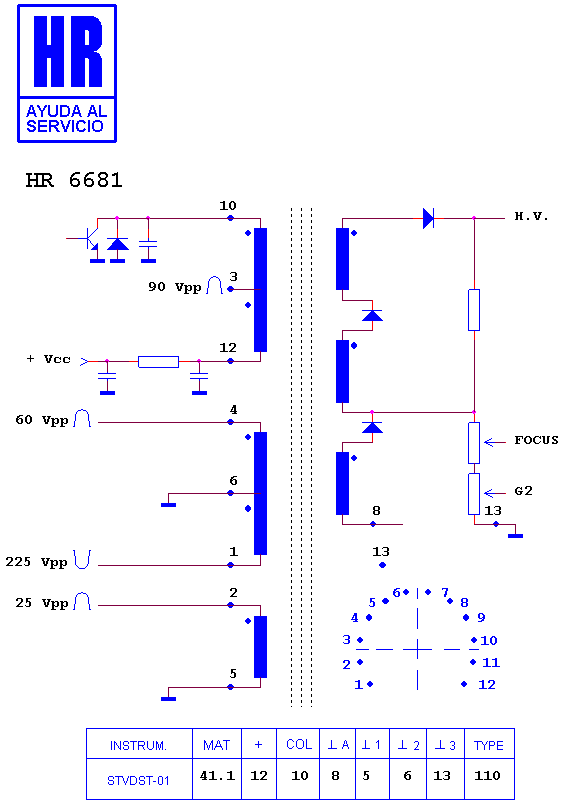

Schematic diagram for HR 6681
schematic

Manufacturer equivalents (6)

11020926251000 · 1182.1567 · 1182.1567 B · 1182.1567A · 63.2106.000 · HR 6681

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6352 · HR 6369 · HR 6556 · HR 6720 · HR 7990 · HR 6554 · HR 8901 · HR 8324 · HR 7386 · HR 6000 · HR 8376 · HR 8507

Fitted to (5)

SEI-SINUDYNE CHASIS 8000 · SELECO 85 S 33 S 0 · SELECO CHASIS PC 170 · SELECO STAR 110§ · SINUDYNE CHASIS 8000
