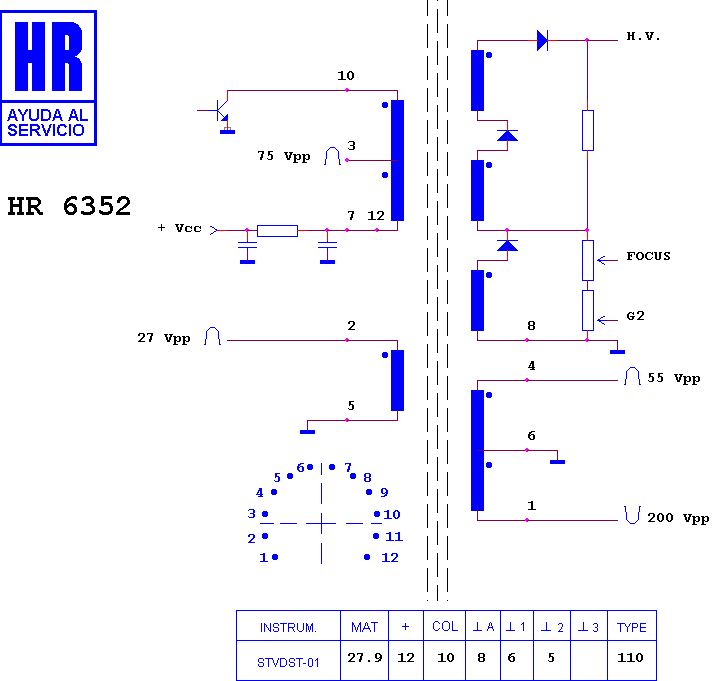

HR 6352

type ST · family 1BP1 · 27.9 kV maximum anode voltage · 110° deflection · 4 windings · 425 g

Manufacturer equivalents (2)

470036.60 · 62.2067.000

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6681 · HR 6369 · HR 6120 · HR 8770 · HR 6532 · HR 7993 · HR 6545 · HR 6554 · HR 7187 · HR 6592 · HR 7180 · HR 8916
