HR 7993

type ST · family 1VP · 29.4 kV maximum anode voltage · 110° deflection · 3 windings · 408 g

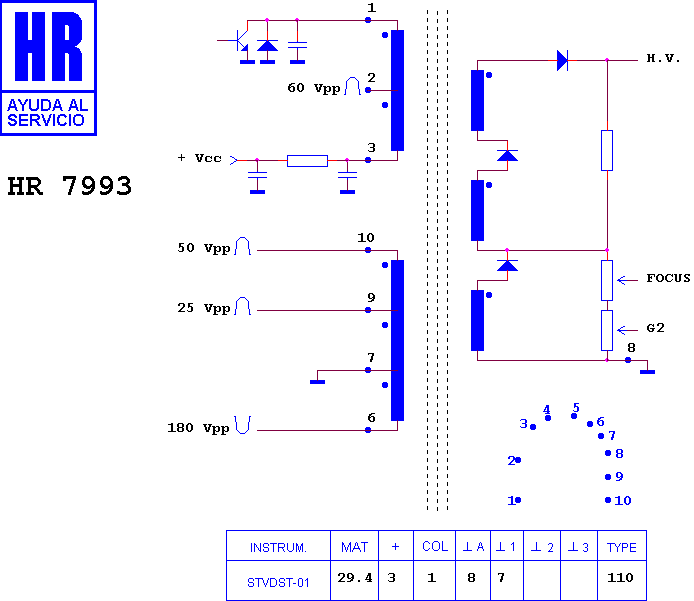

Schematic diagram for HR 7993
schematic

Manufacturer equivalents (1)

154 162 F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6592 · HR 8770 · HR 6554 · HR 6369 · HR 8324 · HR 7180 · HR 6681 · HR 6720 · HR 6515 · HR 8932 · HR 8290 · HR 8658

Fitted to (6)

GOLDSTAR - LG CBT 2570 · GOLDSTAR - LG CBT 2570 X · GOLDSTAR - LG CHASIS PC 12 A · GOLDSTAR - LG CIT 2588 · KENDO CTN 5232 · TENSAI TCTP 7026 X
