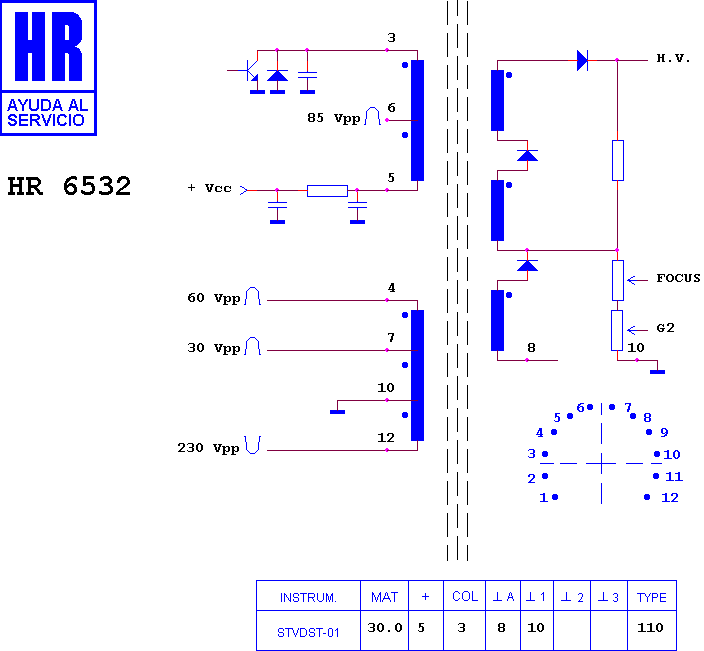

HR 6532

type ST · family 1BP1 · 30 kV maximum anode voltage · 110° deflection · 3 windings · 438 g

Manufacturer equivalents (1)

473175.55

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6545 · HR 6592 · HR 6704 · HR 6120 · HR 6292 · HR 6121 · HR 6069 · HR 6277 · HR 6487 · HR 6177 · HR 6554 · HR 8222

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

CONDOR CTV 8410 · CONDOR VERDI CTV 8410 · PHILCO BF 9525
