HR 6069

type ST · family 1BS1 · 26.4 kV maximum anode voltage · 110° deflection · 2 windings · 410 g

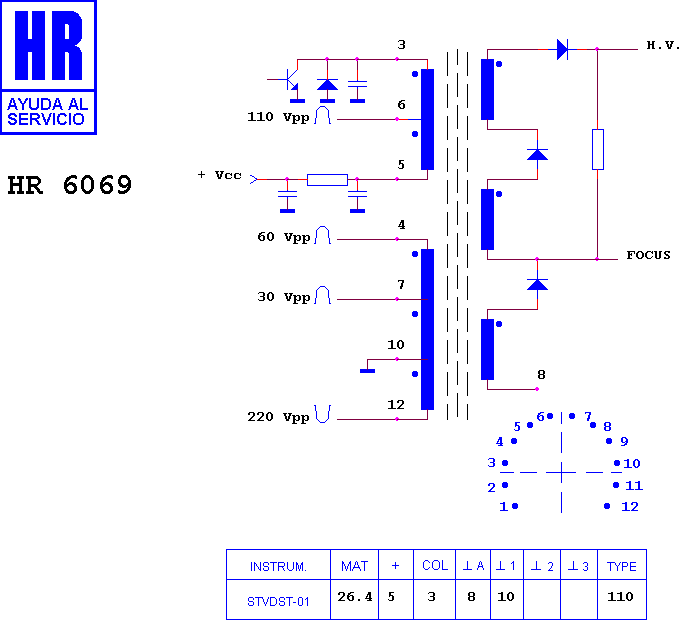

Schematic diagram for HR 6069
schematic

Manufacturer equivalents (3)

472741.00 · 472741.01 · KN30019

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6121 · HR 6277 · HR 6177 · HR 6120 · HR 6487 · HR 6532 · HR 6068 · HR 6545 · HR 6228 · HR 8901 · HR 6515 · HR 8932

Fitted to (2)

TENSAI 521 S OSD · TENSAI OSD 521 S
