HR 6073

type ST · family 1BP1 · 29.7 kV maximum anode voltage · 110° deflection · 4 windings · 425 g

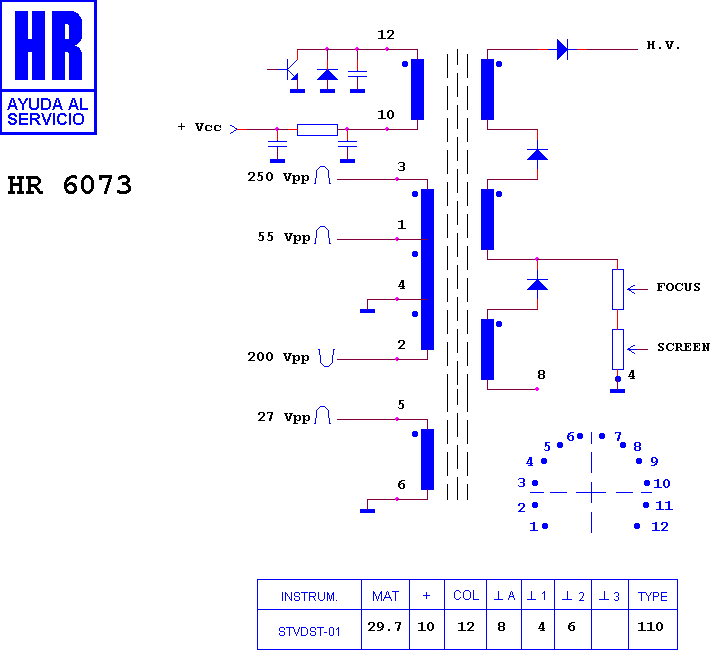

Schematic diagram for HR 6073
schematic

Manufacturer equivalents (1)

2432633

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6017 · HR 8073 · HR 6299 · HR 8857 · HR 6370 · HR 8990 · HR 6703 · HR 7185 · HR 6563 · HR 7386 · HR 6643 · HR 6231

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
