HR 6017

type ST · family 1BP1 · 23.1 kV maximum anode voltage · 110° deflection · 4 windings · 358 g

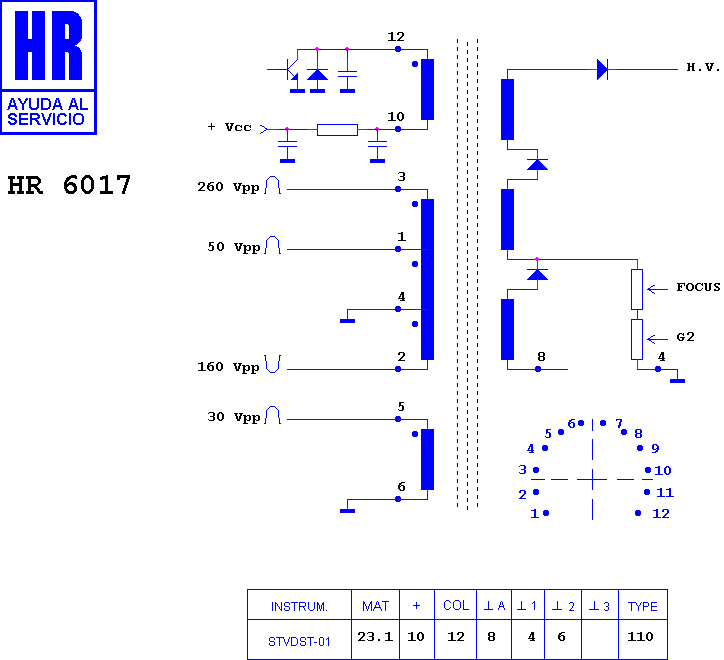

Schematic diagram for HR 6017
schematic

Manufacturer equivalents (3)

2432632 · 470181.00 · 534 TX 0066

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6073 · HR 7901 · HR 8548 · HR 7873 · HR 8459 · HR 7386 · HR 8990 · HR 8845 · HR 6604 · HR 6252 · HR 8851 · HR 5804

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

THOMSON CHASIS ICC 2
