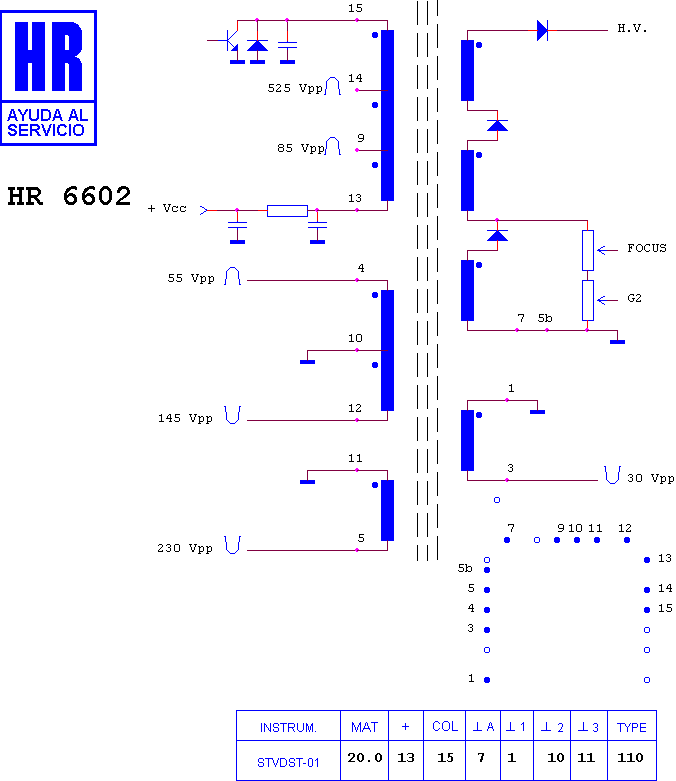

HR 6602

type ST · family 1IP · 20 kV maximum anode voltage · 110° deflection · 5 windings · 430 g

Manufacturer equivalents (1)

HR 6602

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7873 · HR 8459 · HR 80047 · HR 8044 · HR 8026 · HR 80129 · HR 6643 · HR 6365 · HR 7990 · HR 6518 · HR 7253 · HR 7951

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16506 — EHT anode lead
