HR 7873

type ST · family 1NP1 · 23.7 kV maximum anode voltage · 110° deflection · 3 windings · 278 g

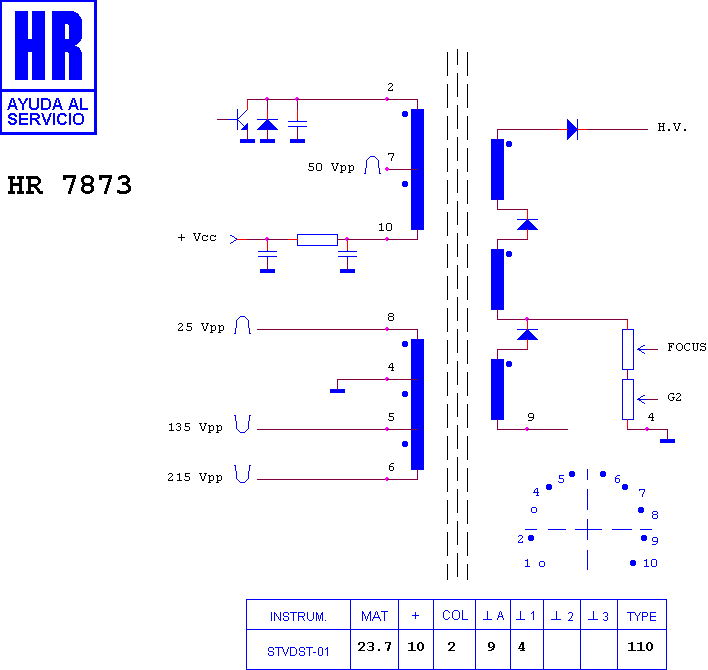

Schematic diagram for HR 7873
schematic

Manufacturer equivalents (6)

73212 · 73220 · FAT3746 · FCC 2215 AE · FCC2215BE · TR 7270

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8015 · HR 8459 · HR 8990 · HR 7386 · HR 6252 · HR 7253 · HR 8845 · HR 6604 · HR 7288 · HR 7901 · HR 8450 · HR 8701

Fitted to (14)

BUSH-MURPHY-RANK M 22 S 01 · BUSH-MURPHY-RANK ZX 3000 · FIDELITY 22" · FIDELITY 73212 · FIDELITY CTV 22 · FIDELITY CTV 22 R · FIDELITY CTV 22 T · FIDELITY CTV 2210 · FIDELITY CTV 222 S · FIDELITY CTV 2224 · FIDELITY CTV 2226 · FIDELITY M 22 T 01 · FIDELITY ZX 3000 · FIDELITY ZX 3000 22"
