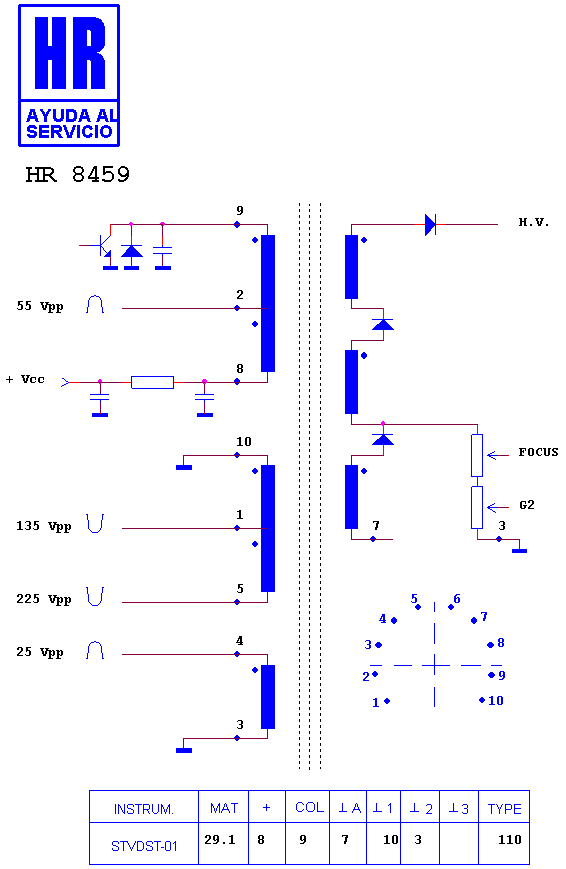

HR 8459

type ST · family 1NP1 · 29.1 kV maximum anode voltage · 110° deflection · 4 windings · 278 g

Manufacturer equivalents (1)

FCV 2010 E 10

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8845 · HR 80047 · HR 6518 · HR 8026 · HR 7990 · HR 7062 · HR 8837 · HR 7967 · HR 6515 · HR 8376 · HR 8578 · HR 6556

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

RCA RAR 2150 · RCA RBA 2020 · RCA RBA 2150 · RCA TV 20
