HR 80129

36.6 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

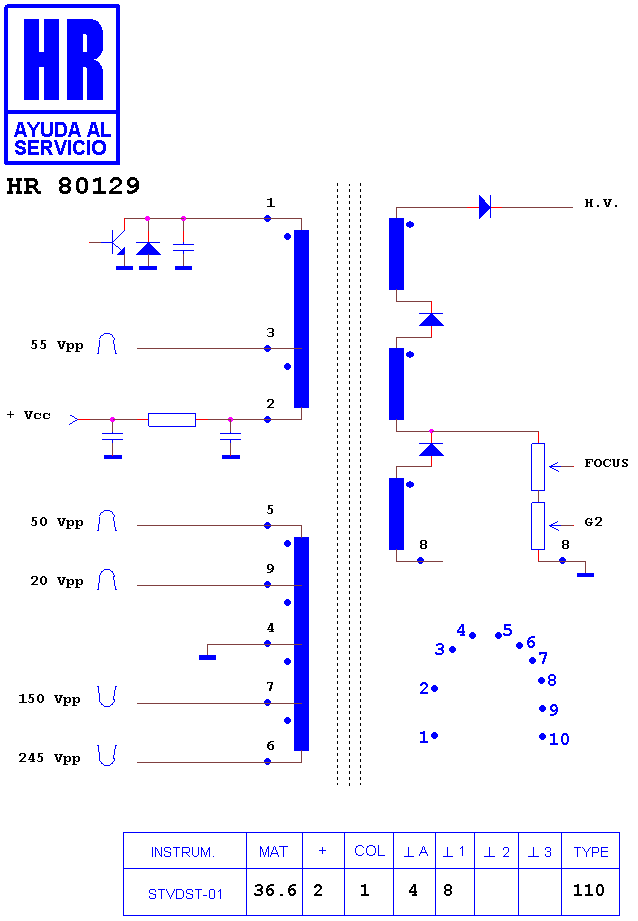

Schematic diagram for HR 80129
schematic (archived)

Manufacturer equivalents (6)

40407-4020 · 5931168E00 · BSC62E · BSC68E · BSC6EE · FYU030220-279

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8204 · HR 8044 · HR 6365 · HR 6604 · HR 6173 · HR 6068 · HR 6602 · HR 8883

Fitted to (14)

APX AT 2402 · CHH G 25 D 19 · CHH PF 2589 D · GENERAL ELECTRIC 24 GP 653 · GENERAL ELECTRIC CHASIS 10 C 1 S · PRECISION CHASIS 10 C · PRECISION PTS 27 S 20 · PRECISION PTV 2544 · RCA 24 GP 653 · RCA CHASIS 10 C 1 S · RCA CHASIS 10 C 5 · RCA CHASIS CH 10 C 5 · RCA MCR 66 R 400 · T E VATV 2905 A
