HR 8044

type ST · family 1AP1 · 25.2 kV maximum anode voltage · 110° deflection · 3 windings · 366 g

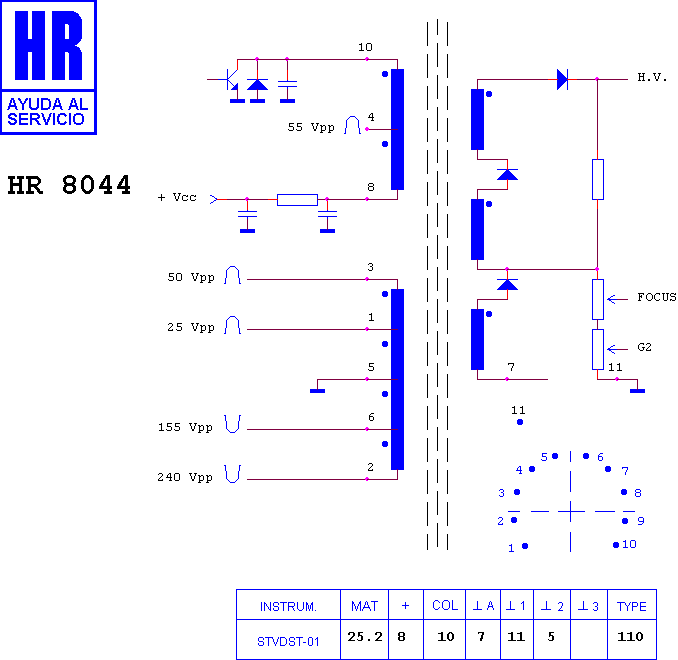

Schematic diagram for HR 8044
schematic

Manufacturer equivalents (3)

473200.16 · 473200.19 · AFS 318

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6365 · HR 80129 · HR 8883 · HR 7218 · HR 8204 · HR 8576 · HR 6012 · HR 6219 · HR 6209 · HR 7860 · HR 8078 · HR 8285

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

OTF CHASIS 25-28"
