HR 8078

type ST · family 1NP1 · 27.8 kV maximum anode voltage · 110° deflection · 4 windings · 390 g

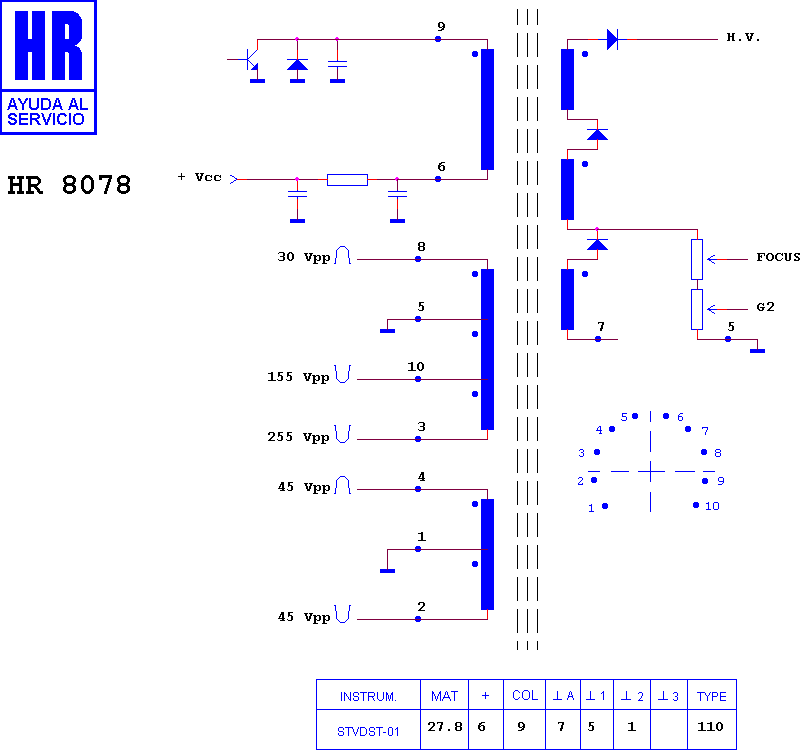

Schematic diagram for HR 8078
schematic

Manufacturer equivalents (4)

003021002 · 4515 03 68 · RO 643 · TR 643

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8285 · HR 6173 · HR 6160 · HR 7901 · HR 6017 · HR 8044

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

META 25 RPS · META CHASIS COD · META CHASIS CODE 110
