HR 8548

40.5 kV maximum anode voltage · 110° deflection · 4 windings · 444 g

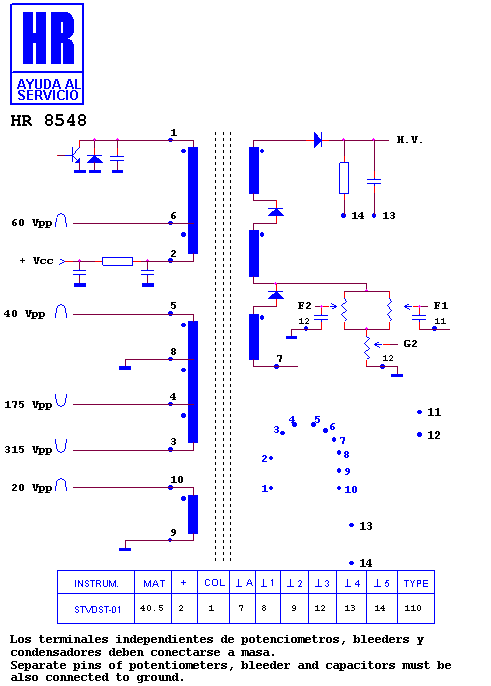

Schematic diagram for HR 8548
schematic (archived)

Manufacturer equivalents (2)

334P247014 · 334P247A14

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6017 · HR 7951

Fitted to (3)

MITSUBISHI CT 32 BW 1 G · MITSUBISHI CT 32 CW 1 CD · MITSUBISHI CT 33 CW JCD
