HR 6102

type ST · family 1BP1 · 27.6 kV maximum anode voltage · 110° deflection · 4 windings · 422 g

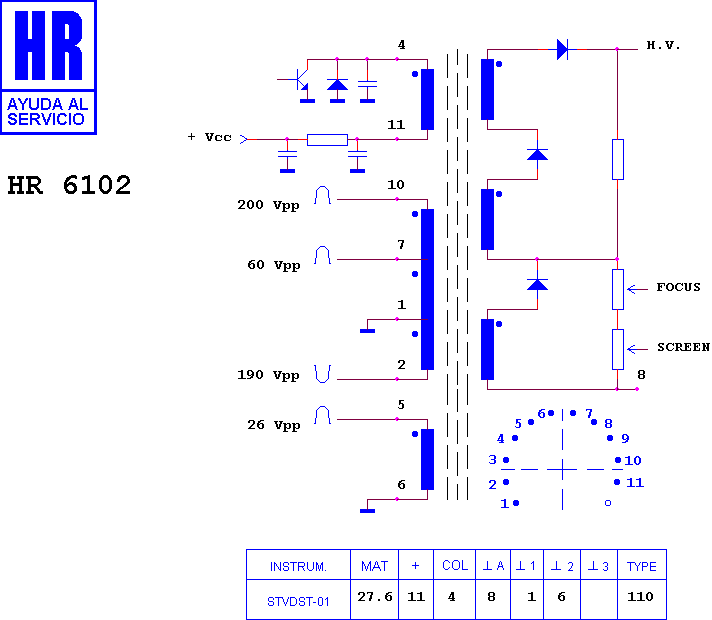

Schematic diagram for HR 6102
schematic

Manufacturer equivalents (15)

094-01006/0.5 · 094-01006/2.1 · 100297.90 · 1182.5002 · 1182.5009 · 1182.5022 · 1182.5022A · 37365.00 · 37365.01 · 37365.02 · 94-01006/0.5 · 94-01006/2.1 · HR 1.BPC 6102 · HR 6102 · HR 6102 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80037 · HR 7346 · HR 80073 · HR 6368 · HR 7185 · HR 6703 · HR 8857 · HR 7399 · HR 6370 · HR 8117 · HR 6234 · HR 6299

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (7)

FISHER FTS 865 · FISHER FTS 870 · SANYO CEP 2590 · SANYO CEP 2590 25" MD · SANYO CEP 2595 · SANYO CEP 2595 N · SANYO CHASIS E 7 110§
