HR 7415

type ST · family 1SB · 17.5 kV maximum anode voltage · 90° deflection · 4 windings · 358 g

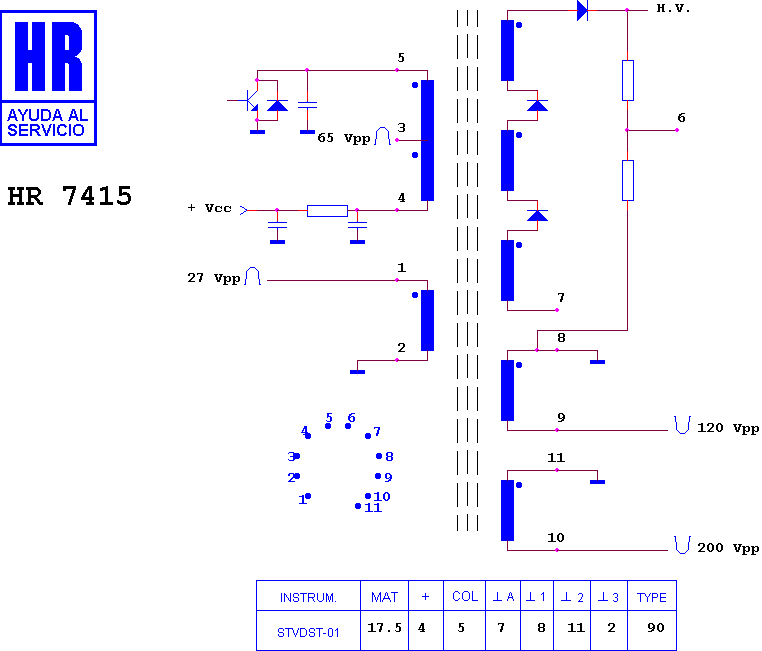

Schematic diagram for HR 7415
schematic

Manufacturer equivalents (4)

1-439-351-12 · 1-439-351-22 · FAT3704 · SP 158

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7243 · HR 7409 · HR 7407 · HR 7158 · HR 6610 · HR 7688 · HR 80131 · HR 6399 · HR 7384 · HR 7806 · HR 8272 · HR 7421

Fitted to (9)

SONY KV 20 TR 21 · SONY KV 20 TS 20 · SONY KV 20 TS 24 · SONY KV 20 TS 30 · SONY KV 20 XBR · SONY KV 20 XBR MK II · SONY KV 2011 CR · SONY KV 2084 R · SONY KV 21 XBR 1
