HR 8272

type ST · family 1XP1 · 20.7 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

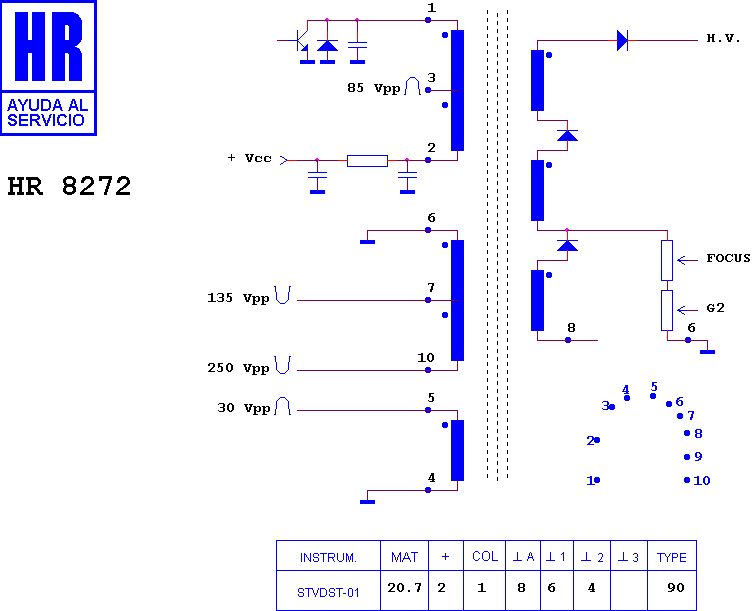

Schematic diagram for HR 8272
schematic

Manufacturer equivalents (6)

08110 · 08111 · 08112 · 08113 · 3306 130 08111 · AT 2078/U0-2

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7634 · HR 8843 · HR 7600 · HR 7435 · HR 7445 · HR 8330 · HR 7779 · HR 7601 · HR 7479 · HR 8222 · HR 7777 · HR 8269

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
