HR 7777

type ST · family 1VP · 27.6 kV maximum anode voltage · 90° deflection · 4 windings · 372 g

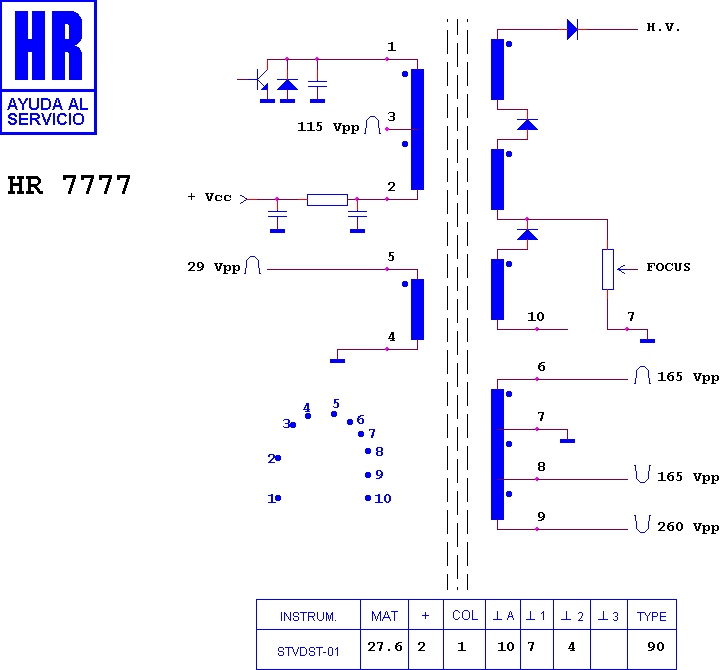

Schematic diagram for HR 7777
schematic

Manufacturer equivalents (15)

003141010 · 1-439-530-00 · 1-439-530-11 · 1-439-530-13 · 1-439-530-21 · 1-439-530-31 · 1-439-530-51 · 1-439-536-00 · 1-439-536-11 · 1-453-212-11 · NX 2741/M3B · NX2741/M · NXM2741 · RO 264 · TR 264

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8819 · HR 7729 · HR 8466 · HR 7437 · HR 7438 · HR 7601 · HR 7825 · HR 7806 · HR 8254 · HR 7600 · HR 8843 · HR 8272

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

SONY KV 2135 H · SONY KV 2135 M 3/B · SONY KV 2185
