HR 8254

type ST · family 1XP1 · 19.9 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

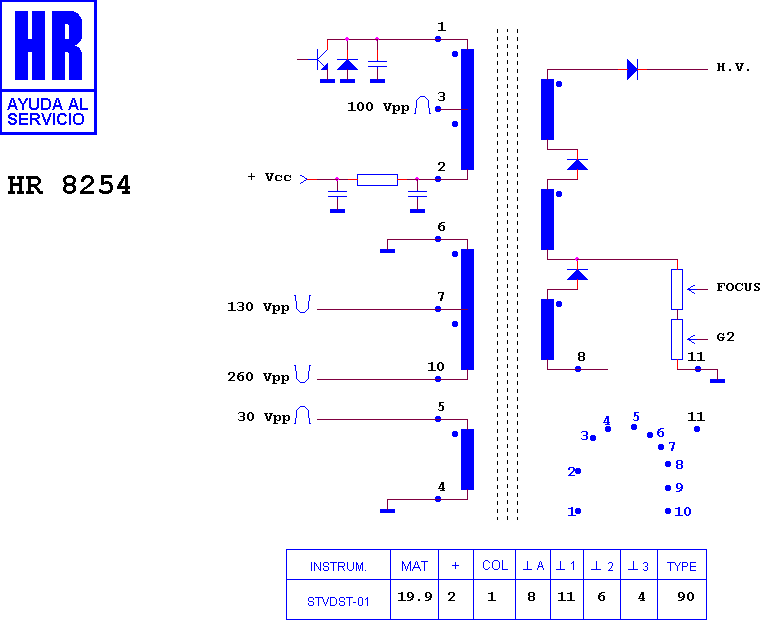

Schematic diagram for HR 8254
schematic

Manufacturer equivalents (18)

08190 · 08191 · 08192 · 08193 · 08194 · 1-453-209-11 · 1-453-216-11 · 30000542 · 3306 130 08191 · 5732025 · AT 2079/U1 · BSC25-0820 · BSC25-0821 · BSC31-064/A · BW00302 · BW00302A · KT 13.001 · PBW00302A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8843 · HR 7634 · HR 7600 · HR 8272 · HR 7729 · HR 8330 · HR 7435 · HR 7779 · HR 7601 · HR 8307 · HR 7777 · HR 7479

Fitted to (3)

SONY KV 140 ME · SONY KV 140 MG · SONY KV 1450 B
