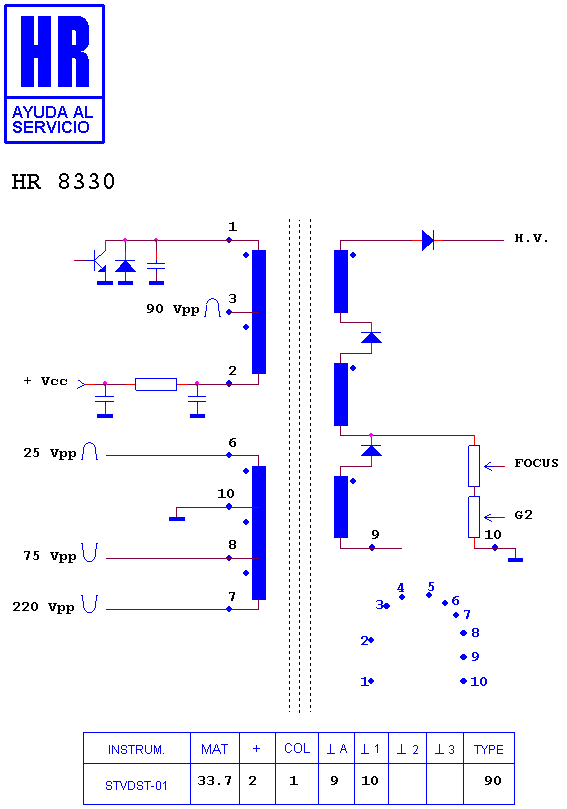

HR 8330

type ST · family 1YP · 33.7 kV maximum anode voltage · 90° deflection · 3 windings · 390 g

Manufacturer equivalents (3)

CE 42374 · CE 42374-00 CKJ 1 · CE 42374-001

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8254 · HR 8307 · HR 8359 · HR 7667 · HR 8222 · HR 6554 · HR 6556 · HR 7967 · HR 6122 · HR 7782 · HR 7788 · HR 8667

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

JVC AV 35 BH 4 · JVC AV 35 BP 4 · JVC HRM 37 PS
