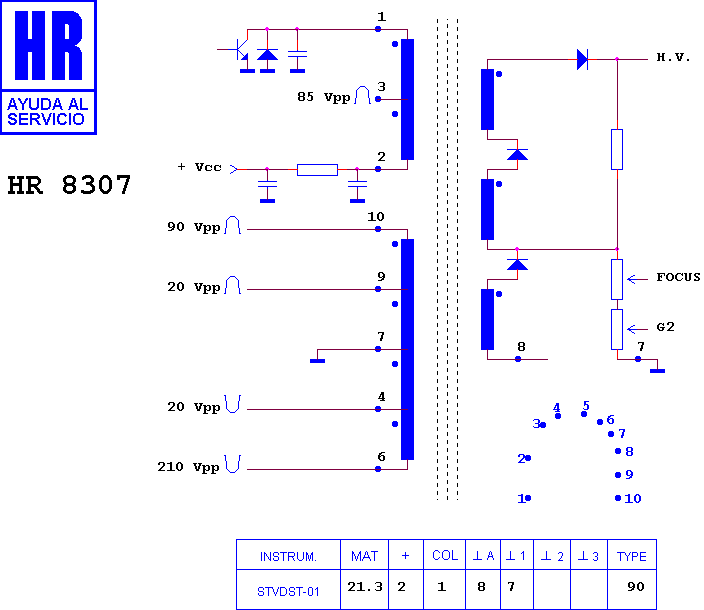

HR 8307

type ST · family 1YP · 21.3 kV maximum anode voltage · 90° deflection · 3 windings · 400 g

Manufacturer equivalents (1)

FFA 93034 L

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8330 · HR 8819 · HR 8254 · HR 7600 · HR 7634 · HR 7782 · HR 8137 · HR 7788 · HR 7131 · HR 8479 · HR 8466 · HR 6406

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
