HR 7782

type ST · family 1XP1 · 22.1 kV maximum anode voltage · 90° deflection · 3 windings · 258 g

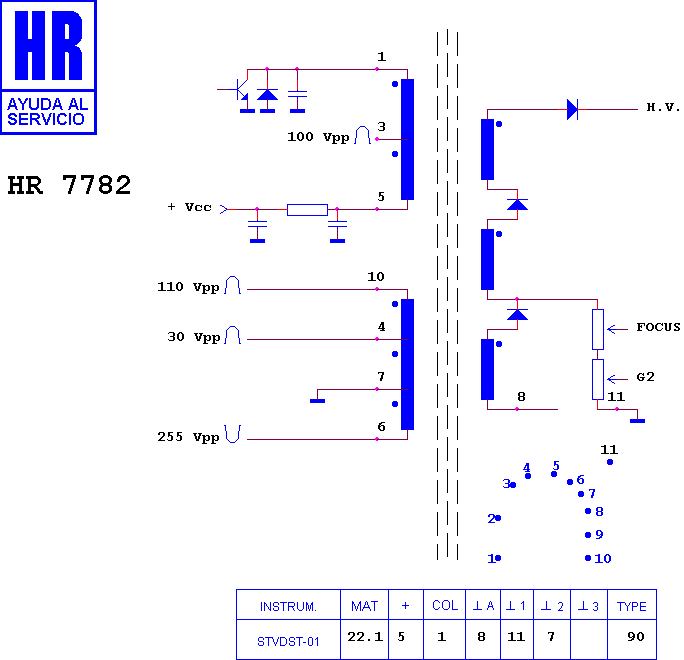

Schematic diagram for HR 7782
schematic

Manufacturer equivalents (13)

003081015 · 013370701 · BSC21-2601S · FCK 14 B 025 · FCK 1482 · JF0501-2406 · JF0501-2406B · LTF00CPS2026 · LTF00CPXB020 · LTF00CPXB022 · LTF00EPSM002 · RO 071 · TR 071

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7788 · HR 8137 · HR 8110 · HR 8111 · HR 6122 · HR 8330 · HR 7667 · HR 8843 · HR 7989 · HR 7779 · HR 8222 · HR 6406

Fitted to (7)

BUSH-MURPHY-RANK BTV 17 · FUNAI TVR 1400 · FUNAI TVR 1400 A · MATSUI 1408 T · MATSUI TVR 180 T · ORION C 1499 Y · TEAC MV 3400
