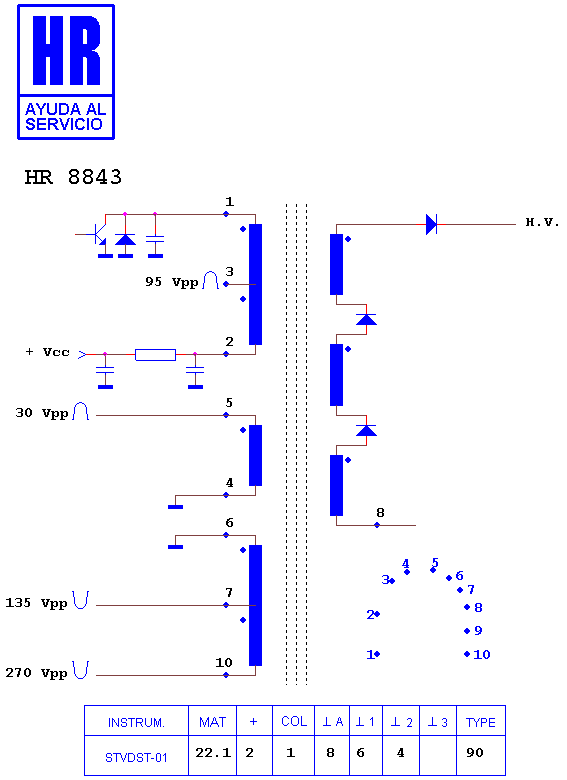

HR 8843

type ST · family 1VS · 22.1 kV maximum anode voltage · 90° deflection · 4 windings · 300 g

Manufacturer equivalents (2)

1-453-209-11 · AT 2079/U0

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7435 · HR 7777 · HR 7634 · HR 8254 · HR 7600 · HR 8272 · HR 7601 · HR 7479 · HR 7438 · HR 7806 · HR 8479 · HR 7779

Fitted to (3)

SONY KV 14 B 80 · SONY KV 1450 · SONY KV 1450 B
