HR 7788

type ST · family 1XP1 · 23.1 kV maximum anode voltage · 90° deflection · 3 windings · 262 g

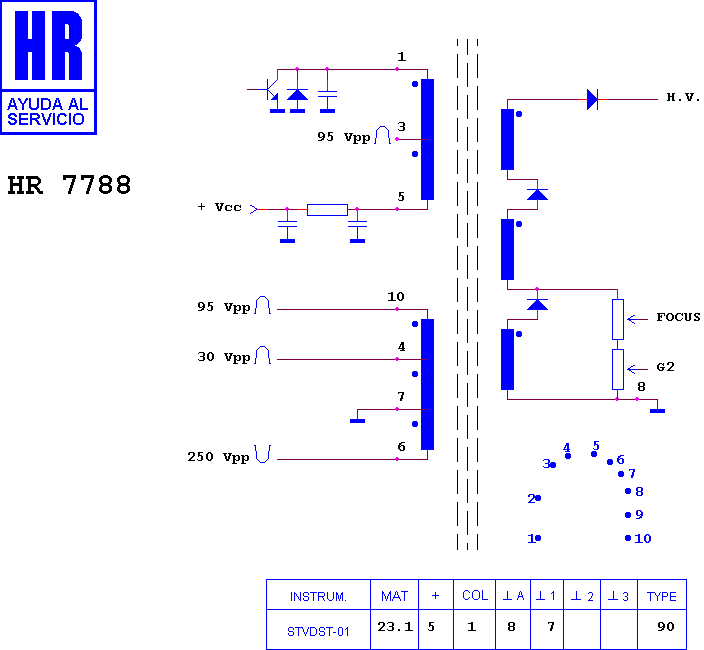

Schematic diagram for HR 7788
schematic

Manufacturer equivalents (1)

154 064 V

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7782 · HR 8137 · HR 8330 · HR 8222 · HR 6554 · HR 8269 · HR 7751 · HR 7779 · HR 7989 · HR 8300 · HR 7667 · HR 6122

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
