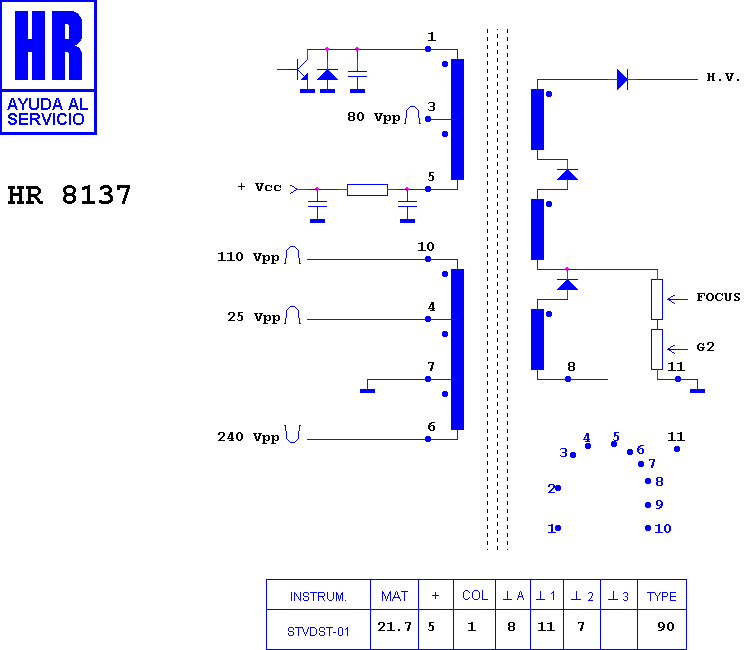

HR 8137

type ST · family 1XP1 · 21.7 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

Manufacturer equivalents (2)

154 064 M · LTF 00 EPGS 001

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7782 · HR 7788 · HR 7435 · HR 6122 · HR 8479 · HR 7599 · HR 7967 · HR 7751 · HR 6556 · HR 6406 · HR 8222 · HR 7976

Fitted to (8)

FUNAI TV 1400 A MK 6 · FUNAI TV 1400 A MK 7 · FUNAI TV 1400 A MK 8 · FUNAI TV 20 MS · FUNAI TV 2000 T MK 7 · FUNAI TV 2003 · FUNAI TV 2100 A MK 6 · LG - GOLDSTAR CTM 4842 M
