HR 7599

type ST · family 1NP · 22 kV maximum anode voltage · 90° deflection · 3 windings · 240 g

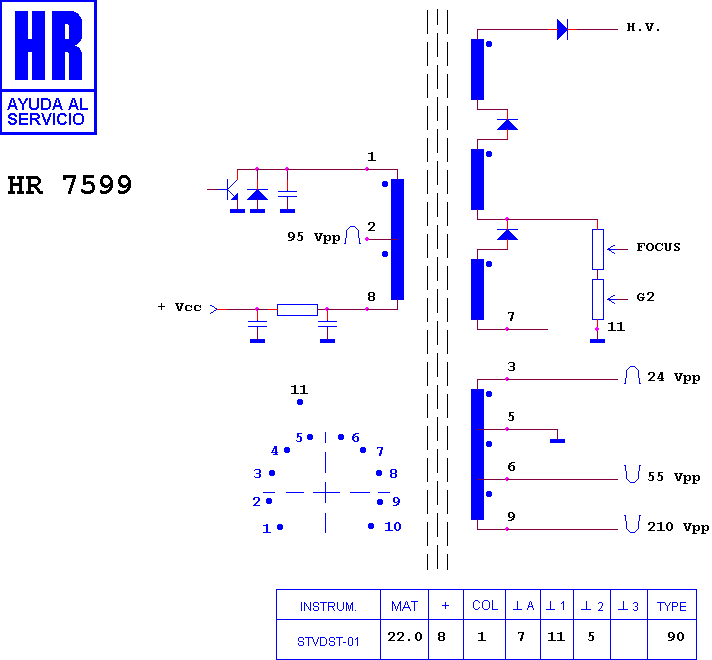

Schematic diagram for HR 7599
schematic

Manufacturer equivalents (2)

1142.1265 · DS 18

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7286 · HR 6556 · HR 7445 · HR 7442 · HR 7489 · HR 7741 · HR 8359 · HR 8222 · HR 7386 · HR 6122 · HR 8330 · HR 8688

Fitted to (2)

MIVAR 20 M 1 · MIVAR 21 S 2
