HR 8381

type ST · family 1XP1 · 22.4 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

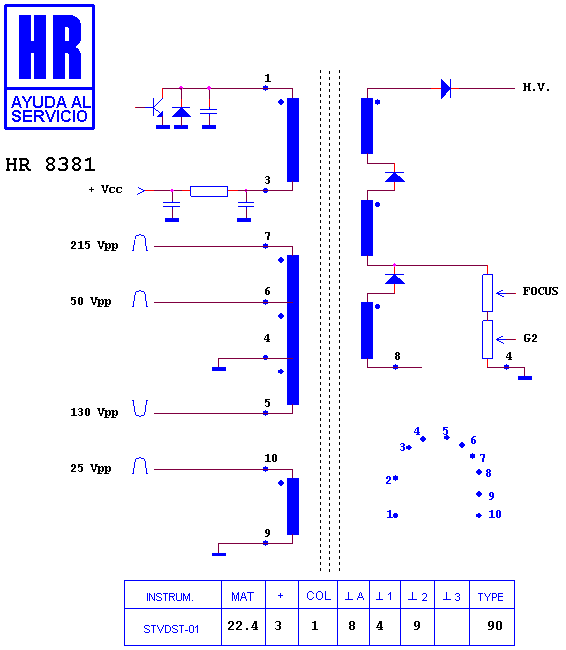

Schematic diagram for HR 8381
schematic

Manufacturer equivalents (11)

1342.0035 · 1342.0035 B · 1342.0035A · 2422 531 02452 · 242253102542 · 531 02452 · 53102542 · F02A.0012 · HR 8381 · JF0501-19816 · KN35009N

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7841 · HR 7907 · HR 8451 · HR 8481 · HR 8688 · HR 7386 · HR 7442 · HR 7489 · HR 7741 · HR 8448 · HR 8026 · HR 80131

Fitted to (3)

PHILIPS 21 PV 908 · PHILIPS 21 PV 908/39 · PHILIPS COMBI TV/VCR

Search this part in the full database
