HR 7741

type ST · family 1XP1 · 27.7 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

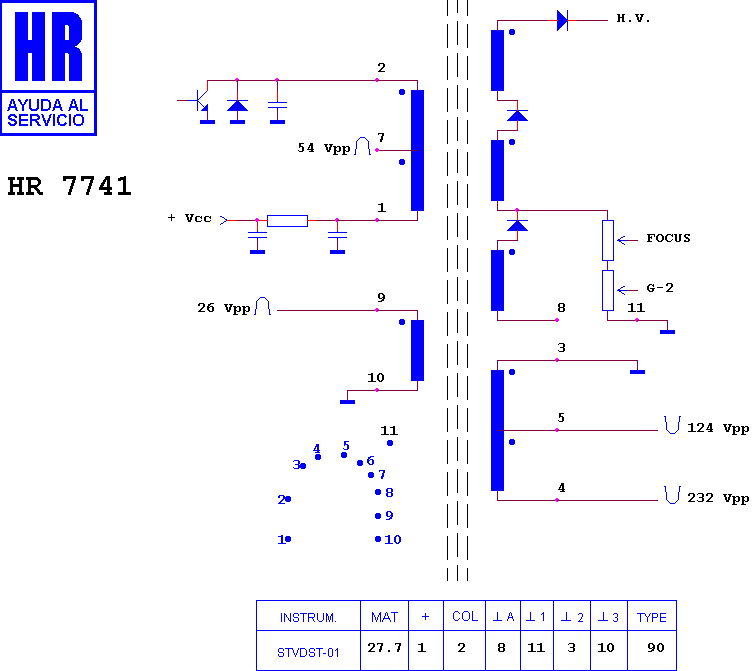

Schematic diagram for HR 7741
schematic

Manufacturer equivalents (2)

3130 108 30930 · 3130 108 30931

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7442 · HR 7489 · HR 8026 · HR 8345 · HR 7353 · HR 8321 · HR 8667 · HR 7386 · HR 8448 · HR 6556 · HR 8206 · HR 8381
